Client
Rijkswaterstaat Major Projects and Maintenance, Eastern Netherlands, Arnhem
Location
A50, Ewijk–Valburg section
Architect
Quist Wintermans Architects (QWA)
Construction period
May 2010 – August 2013
Bridge over the Waal

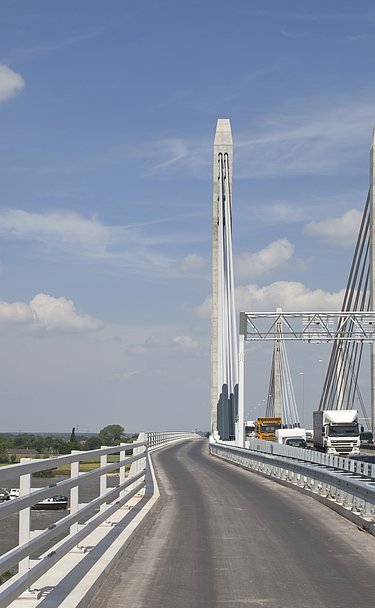

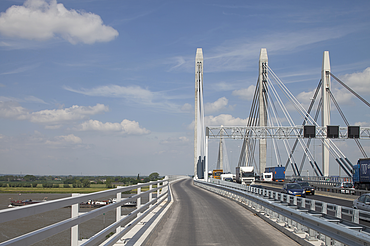

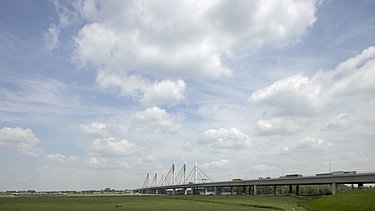

A new concrete cable-stayed bridge that improves traffic flow on the crucial Ewijk–Valburg motorway section.
On behalf of Rijkswaterstaat, ZÜBLIN Nederland, as a partner of Bouwcombinatie Waalkoppel v.o.f., helped to carry out the widening of the A50 between the Ewijk junction and Valburg from 2x2 to 2x4 lanes. A key part of the project was the construction of a new concrete cable-stayed bridge over the River Waal.
Details:
- Total length: 1,055 metres
- Width: 33 metres
- Main span: 270 metres
- Construction methods: sliding formwork method & free-form construction method
The project also included new engineering structures at both junctions, the refurbishment of existing engineering structures, road surfacing works, temporary traffic measures and a new dynamic traffic management system (DVM).
All the works took place on, over and beneath a heavily used motorway, railway line and Class VIc waterway, which made the project particularly challenging from both a technical and organisational perspective.
